1.25mm Pitch Wire Harness

Name: 1.25mm Pitch Wire Harness
Brand: relaxadulttoys
SKU: DQ-007
Availability: InStock

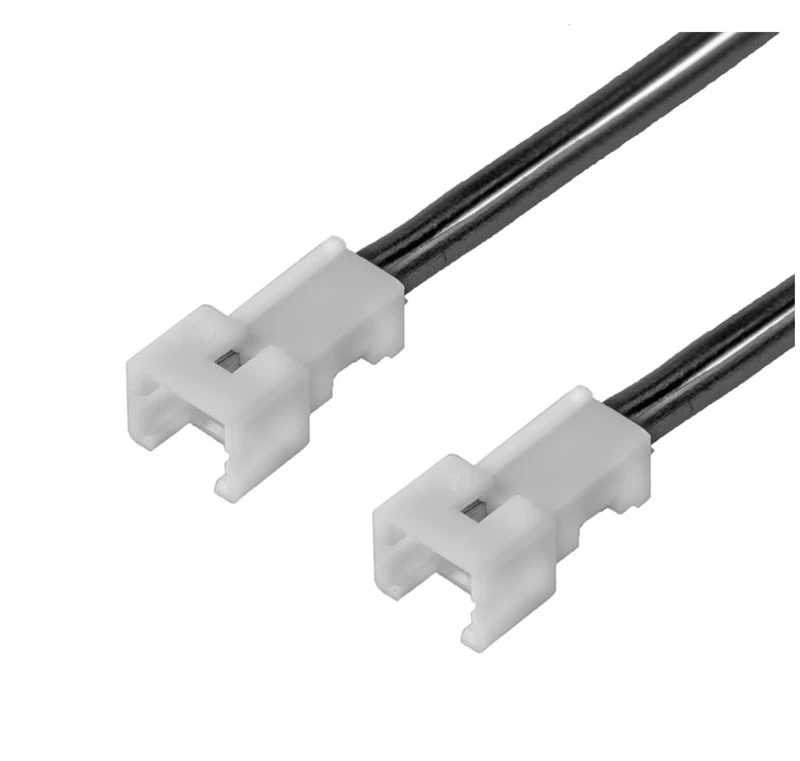

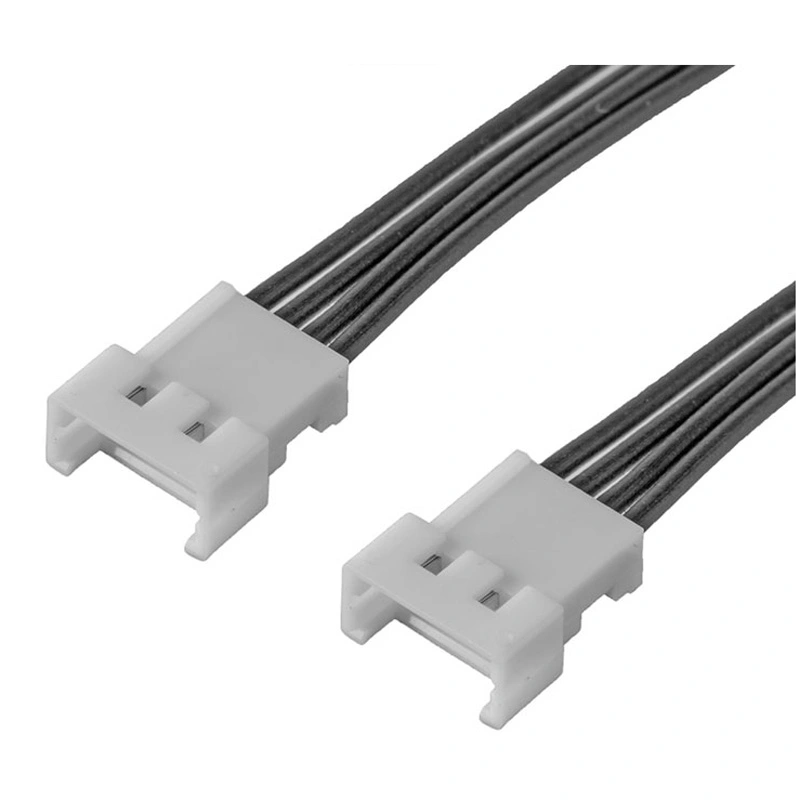

Molex Male to Male 8P 510470800 1.25mm Pitch Connector Cable Assembly

Product Name: 1.25mm Pitch Wire Harness
Connector Pitch：1.25MM
Connector : Molex 510470800, 2/3/4/5/6/7/8/10/12/14 pin
Crimp Terminal: 501338000
Wire: UL 1007 AWG28#/ 26# /24#, PVC
Pitch Mating Interface: 1.25mm

0.0 (0 Reviews)

0 Sold

$0.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Prouduct Name	Custom Molex 510470800 Connector Wire Harness
Equivalent to Molex Part No.	2181100800，2181100801，2181100802，2181100803，2181100804，510470800
Applications	Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters	1. Connector housing: 510470800 1.25mm Pitch Receptacle Housing, Dual Row, 8 Circuits, UL 94V-0, Low-Halogen, Black
	2. Crimp terminal: 501338000 1.25mm Pitch Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact,
	3. Connector type: rectangular
	4. Connector Feature: latch lock
	5. Wire: UL1007 AWG28#/26#/24#/22#/ tinned stranded copper wire conductor, PVC insulation.
	6. Cable jacket: black PVC jacket
	7. Shielded: un-shielded / braided shielded
	8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
	9. Cable style: UL1007 Round cable/ UL1571 Parallel cable
	10. Color: Black, white, blue, green etc. MOQ 3000m except black.
	11. Wiring diagrm: defined by customers
	12. Inner molding material: LDPE resin
	13. Outer molding material: 45P PVC resin
Environment temperature:	Ambient temperature for operation: -25…80℃
Waterproof Rating:	IP4X
Certificate:	CE, RoHS, UL(connector, cable)
Package:	**pcs/bind or 1pcs/PE bag
