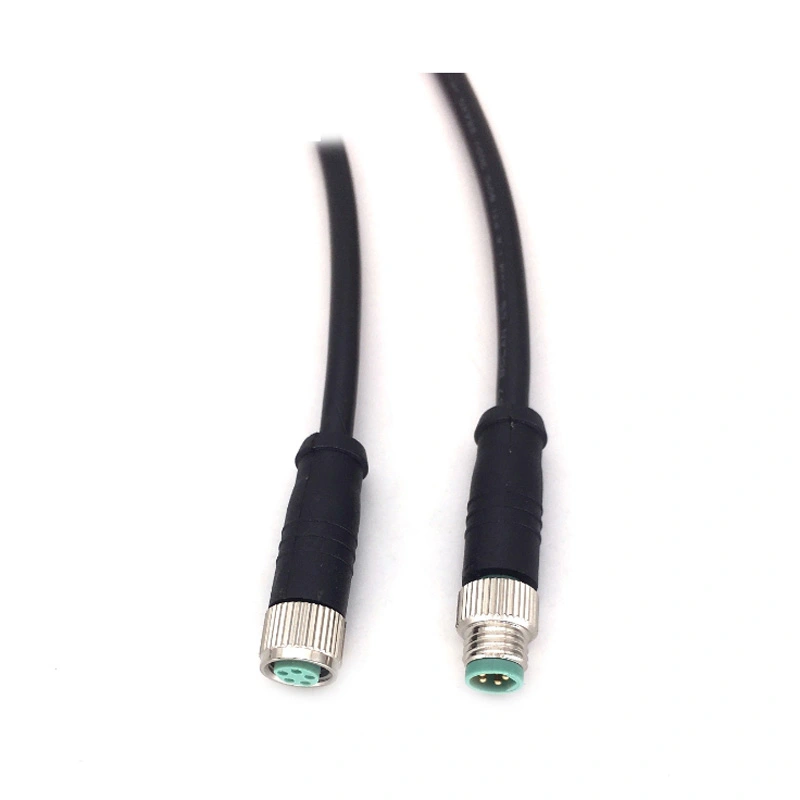

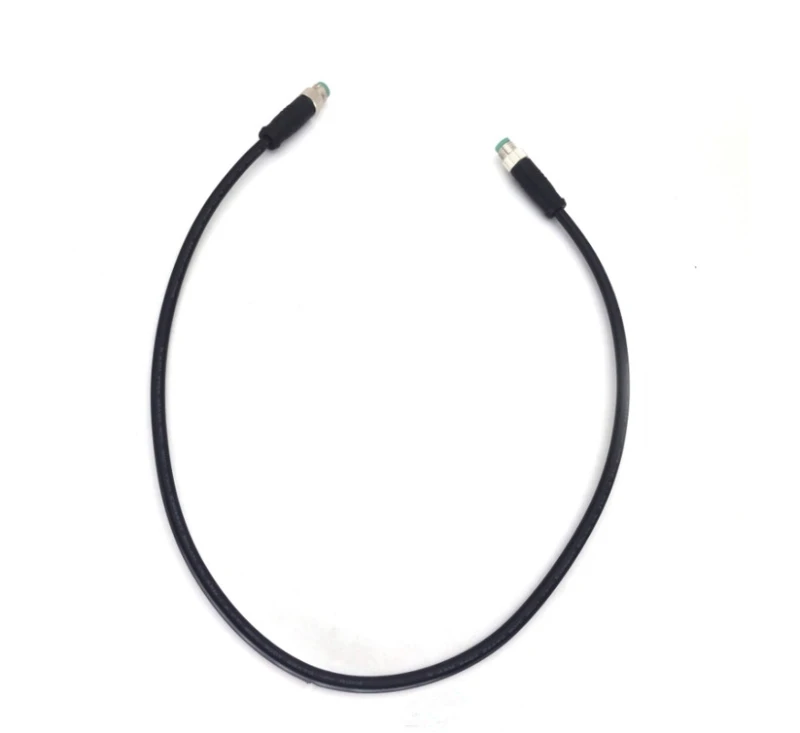

M8 Connector Cable

Name: M8 Connector Cable
Brand: relaxadulttoys
SKU: DQ-006
Availability: InStock

can produce straight and right angle m8 5 pin male cable for various signal sensor.
Product series: M8 Connector Cable
Adapter wire gauge: 22-28AWG
Connector Gender: Male
Waterproof grade: IP67
Connector core number: 5P

0.0 (0 Reviews)

0 Sold

$0.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Product series: M8 Connector Cable	Connector Gender: Male
Industry standard: IEC 61076-2-104	Connector core number: 5P
Plug Guide: Straight	Terminal Material: Copper
Waterproof grade: IP67	Wiring method: welding wire
Adapter wire gauge: 20-28AWG	Connection method: threaded connection
Connector rubber core: PA66	Injection material: TPU
Applicable current: 4A	Connector conductor: copper gold plated
Applicable voltage: 250V	Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring	Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°	Wire cover: PVC/PUR

●Sensors, actuators, encoders, motors	●Industrial grating light curtains
●Factory automation process control	●Equipment battery, semiconductor
●Package label printing equipment	●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment	●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly	●LED outdoor display, outdoor LED lighting
